DexNex

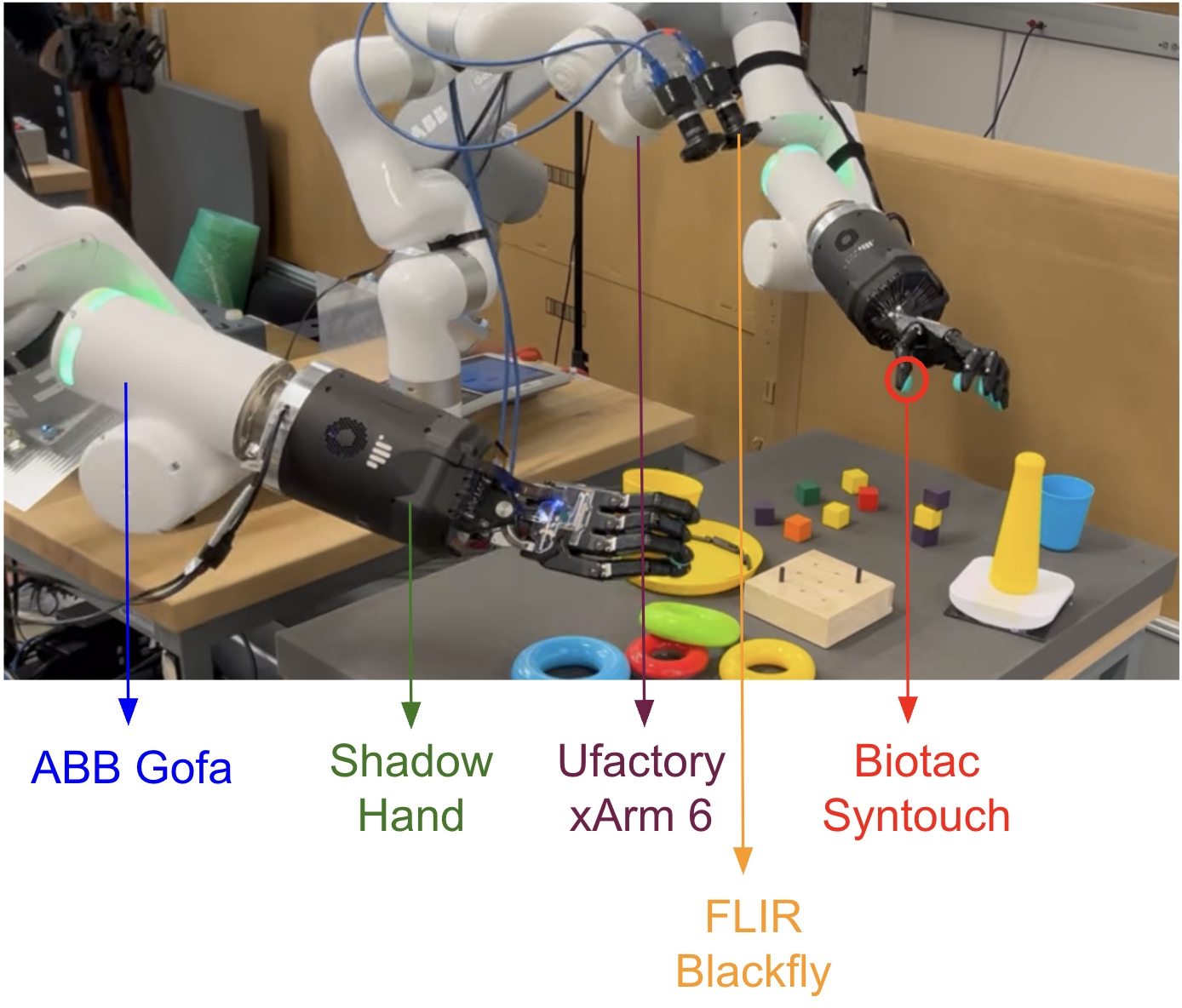

DexNex (Dexterity Nexus) is Northwestern’s bimanual teleoperation testbed composed of:

• ABB Gofa robotic arms
• UFactory xArm6 for neck articulation
• Shadow Hands for dexterous manipulation
• FLIR Blackfly cameras for visual input
• Biotac SynTouch tactile sensors for pressure sensing
• HaptX DK2 gloves for teleoperation and haptic feedback
• Varjo Aero HMD for immersive visual feedback

Overview

The goal of this project is to create a high-fidelity digital twin of the DexNex platform using the Drake simulator. This simulation will support:

• Development and testing of teleoperation and control strategies
• Simulation of new hardware and sensors before real-world deployment
• Application of machine learning techniques for dexterous control and autonomy

A major milestone involves performing Hardware-in-the-Loop (HITL) testing by teleoperating DexNex using HaptX gloves while receiving real-time haptic feedback. The user interacts with the simulated environment visually through the Varjo HMD, aiming to replicate the feel and responsiveness of the real robot.

Progress so far

• Implemented a position controller in Drake that replicates real-world DexNex performance
• Simulated RGB and Depth camera feed and published at 60 Hz via ROS2
• Simulated Biotac tactile sensors and published pressure data at 100 Hz for both hands
• Published joint state data for all actuators at 100 Hz in ROS2

Current Work

I am currently validating the simulator through HITL testing. In parallel, I am working on building a reinforcement learning pipeline to train policies for autonomous task execution using the digital twin.

More detailed updates will be shared as development progresses—stay tuned!
